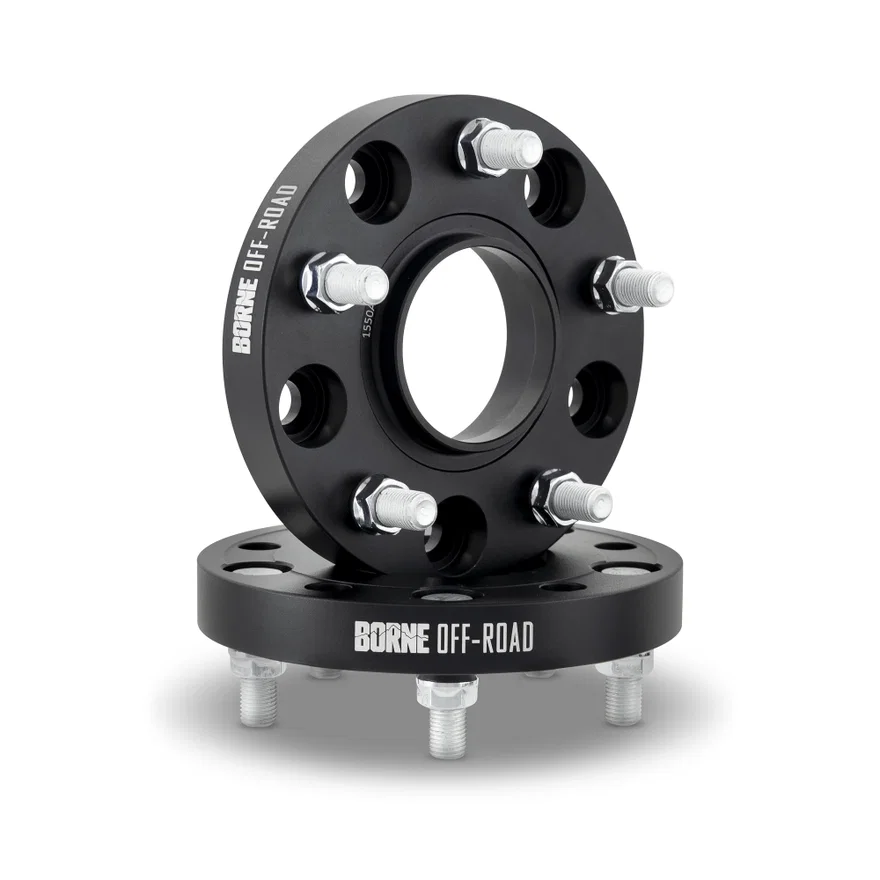

Mishimoto Wheel Spacers, Black, 5X139.7, 1 in, fits Dodge Ram 1500 2002-2008

Part # BNWS-017-250BKSKU MISBNWS-017-250BK

Set your vehicle above for a fit verdict. 17 vehicles listed below.

Specifications
BrandMishimoto
Part typeWheel Spacer Kit
Bolt Pattern5x139.7 mm
ColorBlack
FinishAnodized
Hub Bore Diameter77.8 mm
Install Difficulty1
Lug Hole Quantity5
MaterialAluminum
OptionLabel1 in Thick
SellingPoint01Push wheels out for stance and clearance - adds outward offset so aftermarket wheels and wider tires clear the Ram’s brake calipers and suspension components without contact under full droop or bump.
SellingPoint02Forged 6061-T6 aluminum holds up to truck abuse - forged construction resists the impact, side-loading, and flex cycling that crack cast spacers under off-road and heavy-use truck conditions.
SellingPoint03Hub-centric, not lug-centric - a 77.8mm centering bore mates to the factory hub so wheel load transfers through the hub instead of riding on the studs, eliminating the vibration and wheel walk lug-centric spacers introduce on full-size trucks.
SellingPoint04Grade-12.9 steel studs and lug nuts included - high-tensile 9/16-18 hardware exceeds OEM stud strength, adding the clearance your build needs without trading away clamping force.
SellingPoint05Anodized finish seals against road and off-road corrosion - a durable anodized coating resists the salt, mud, and moisture that pit and seize unsealed aluminum after seasons of truck use.
SellingPoint06Confirmed direct fit for 2002-2011 Dodge Ram 1500 - sized for the factory 5x139.7 bolt pattern, 77.8mm hub bore, and 9/16-18 thread - bolt-on installation, no cutting or hub modification.
SellingPoint07Own it for life - backed by Mishimoto’s Lifetime Warranty, your investment is protected long after install day.
TechSpec Applications2002-2008 Dodge Ram 1500
TechSpec Includes(2) Mishimoto Wheel Spacers--(10) 9/16"-18 Lug Nuts--Mishimoto Lifetime Warranty
TechSpec Material6061 Aluminum
TechSpec NoteWheel spacers are sold in pairs--Please follow safe installation practices by referencing our Installation Guide--Be sure to take proper vehicle measurements to ensure the thread pattern, center bore, and thickness will fit your vehicleMay require trimming of stock wheel studs to prevent interference with wheel.
TechSpec Thread Size9/16 in - 18
Thickness25 mm
Wheel Nuts IncludedYes
UPC / GTIN00840197727171
WarrantyLifetime Warranty
  • Push wheels out for stance and clearance - adds outward offset so aftermarket wheels and wider tires clear the Ram’s brake calipers and suspension components without contact under full droop or bump.
  • Forged 6061-T6 aluminum holds up to truck abuse - forged construction resists the impact, side-loading, and flex cycling that crack cast spacers under off-road and heavy-use truck conditions.
  • Hub-centric, not lug-centric - 77.8mm centering bore mates to the factory hub so wheel load transfers through the hub instead of riding on the studs, eliminating the vibration and wheel walk lug-centric spacers introduce on full-size trucks

Description

Running aftermarket wheels and bigger tires on a lifted Ram 1500 means dealing with clearance the factory never planned for - wide meats rubbing calipers, backspacing that doesn’t work with a lift, and a stance that sits tucked instead of flush. Mishimoto Wheel Spacers add the outward offset that puts the wheel where the build needs it, without the failure modes that cheap cast spacers bring to a full-size truck platform.--Forged 6061-T6 aluminum construction resists the impact, side-loading, and flex cycling that crack cast spacers under off-road and daily truck use. A hub-centric 77.8mm centering bore mates to the factory hub so wheel load transfers through the hub instead of riding on the studs - the same way the factory designed it, eliminating the vibration an d wheel walk that lug-centric spacers introduce. Grade-12.9 steel studs and lug nuts in 9/16-18 thread exceed OEM stud strength, adding clearance without trading away clamping force. A durable anodized finish seals against the salt, mud, and moisture that pit and seize unsealed aluminum after season s of truck use.--Sized for the factory 5x139.7 bolt pattern, 77.8mm hub bore, and 9/16-18 thread, the spacers bolt on to the 2002-2011 Dodge Ram 1500 with no cutting, hub modification, or adapter work. Backed by the Mishimoto Lifetime Warranty.

Fits these vehicles 17

YearMakeModelSubmodelEngine
2005DodgeDakotaLaramie, SLT, ST, Sport3.7L 226 V6, 4.7L 287 V8
2006 - 2007DodgeDakotaLaramie, SLT, ST3.7L 226 V6, 4.7L 287 V8
2008DodgeDakotaLaramie, SLT, ST, SXT, Sport, TRX, TRX43.7L 226 V6, 4.7L 287 V8
2009 - 2010DodgeDakotaBig Horn, Laramie, Lone Star, SLT, ST, SXT, TRX43.7L 226 V6, 4.7L 287 V8
2011DodgeDakotaSLT3.7L 226 V6
2004DodgeDurangoLimited, SLT, ST3.7L 226 V6, 4.7L 287 V8, 5.7L 345 V8
2005DodgeDurangoLimited, SLT, ST, SXT3.7L 226 V6, 4.7L 287 V8, 5.7L 345 V8
2006DodgeDurangoAdventurer, Limited, SLT, SXT3.7L 226 V6, 4.7L 287 V8, 5.7L 345 V8
2007DodgeDurangoAdventurer, Base, Limited, SLT, SXT3.7L 226 V6, 4.7L 287 V8, 5.7L 345 V8
2008DodgeDurangoAdventurer, Limited, SLT, SLT Plus, SXT3.7L 226 V6, 4.7L 287 V8, 5.7L 345 V8
2009DodgeDurangoLimited, Limited Hybrid, SE, SLT3.7L 226 V6, 4.7L 287 V8, 5.7L 345 V8
2002DodgeRam 1500Custom, SLT, ST3.7L 226 V6, 3.9L 239 V6, 4.7L 287 V8, 5.9L 360 V8
2003DodgeRam 1500Laramie, SLT, ST3.7L 226 V6, 4.7L 287 V8, 5.7L 345 V8, 5.9L 360 V8
2004 - 2005DodgeRam 1500Laramie, SLT, SRT-10, ST3.7L 226 V6, 4.7L 287 V8, 5.7L 345 V8, 8.3L 505 V10
2006DodgeRam 1500Laramie, SLT, SRT-10, ST, Sport, TRX43.7L 226 V6, 4.7L 287 V8, 5.7L 345 V8, 8.3L 505 V10
2007DodgeRam 1500Laramie, SLT, ST, Sport, TRX43.7L 226 V6, 4.7L 287 V8, 5.7L 345 V8
2008DodgeRam 1500Laramie, SLT, ST, SXT3.7L 226 V6, 4.7L 287 V8, 5.7L 345 V8
